Argox X 3200/ X Industrial Barcode Printer – Scanindo Interprinting

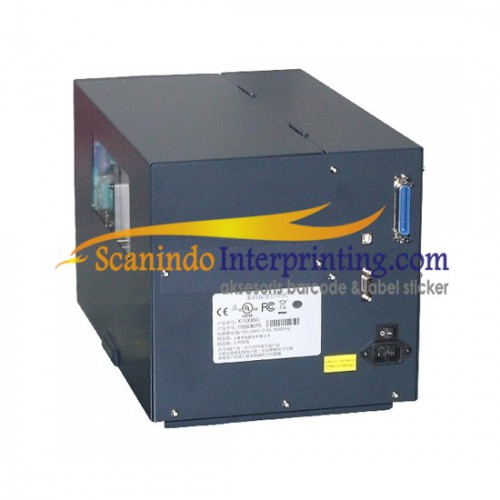

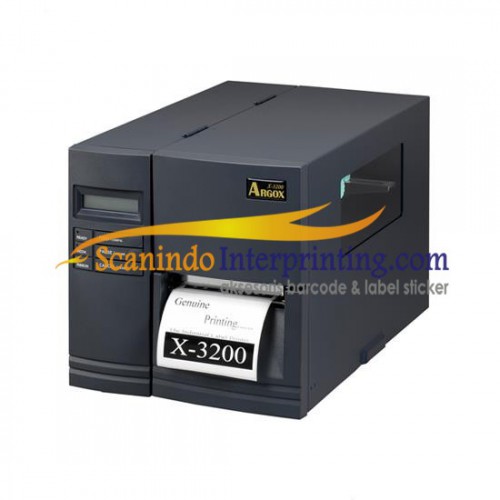

argox-x-3200-x-industrial-barcode-printer-1 argox-x-3200-x-industrial-barcode-printer-2Argox X 3200/ X Industrial Barcode Printer

Harga Rp Call/Chat
Menerima pesanan unit Printer dalam jumlah banyak

Application :
– Shipping & Receiving
– Inventory Labeling
– Retail Tag
– Shelf Labeling
– Packaging
– Cargo Tracking
– Luggage Labeling
– Logistic Labeling
– Work in Process
– Parts Marking
– Product Labeling
– Complience Labeling
– Pallet Labeling
– Electronics Parts Labeling

Spesifikasi :
300 DPI INDUSTRIAL PRINTER
16 MB SDRAM MEMORY
8 MB FLASH MEMORY
PRINT WIDTH : 104 MM
PRINT LENGTH : 1270 MM
PRINT SPEED : 127 MM/SEC
RIBBON MAX 360M ( WAX )
MEDIA 8 ” ( 203 MM ) OD
CANTRONICS PARALLEL, RS -232
USB 2.0, PS/2 KEYBOARD

Overview
The X-3200 industrial barcode printer features 300dpi printing for high quality text and graphics on fabric labels, safety labels and labels for small items such as jewelry. The heavy duty is capable of 5ips print speed using its 32-bit RISC microprocessor. The 8MB Flash and 16MB DRAM onboard memory facilitates high quality printing.

An internal RTC lets you print time and dates on labels. RS-232, parallel, and USB interfaces allow easy plug-and-play integration with your current system. For stand-alone operation the X-3200 has a standard PS/2 interface for connecting an input device such as a keyboard or scanner, as well as a multilingual LCD display for convenient installation, configuration, and operation. The X-3200 provides outstanding value as it delivers industrial strength high quality printing for a wide range of labels.

● For heavy duty labeling demand
● 300dpi high resolutionavailable
● 32-bit CPU, LCD display, up to 5ips printing speed, and enlarged memories
● Adjustable reflective and transmission double sensor system ensures precise label detection
to meet versatile media demands
● Centronics parallel, RS-232 and USB interfaces available for versatility applications,
and PS/2 interface for standalone operation: directly connecting a PC keyboard to input
label data without a PC
● Industrial-strength media management: 360M ribbon & 8” media compartment
● Easy media loading & ribbon installation
● An external switch sets the printer for use with either ribbon wound ink-side in or ink-side out
● Durable and easy maintenance : easy-toreplace cutter and peeler
● Support 1D/GS1 Data bar, 2D/ Composite codes and QR barcodes
● Full range of options: Cutter, Peeler, media stacker,and standalone keyboard (Argokee)
● Printer Server external for Ethernet/Wireless/Bluetooth options

Specification
Printing method
Direct Thermal & Thermal Transfer
Printing resolution
300dpi(12 dots/mm)
Printing Speed
1~up to 5 ips(25.4~127mm/s)
Printing Length
Max 50”(1270mm) Min 0.2”(5mm)
Printing Width
MAX 4.16
Memory
16MB DRAM(13MB user available)
8MB Flash ROM(6MB user available)
CPU Type
32 bit RISC microproceessor
Sensors
Media gap & black line Reflective sensor x 1 (Movable) & Transmissive sensor x 1(Movable) / Head ope
Operation Interface
Back-lit LCD, 2-line x 16, LED Indicator x 3(Ready/Media/Ribbon)
Communication Interface
Centronics Parallel(Baud rate 2400 ~ 115200 bps), RS-232, USB, PS/2 keyboard
Fonts
Internal character sets standard 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm)
1D Barcodes
PPLA: Code 39 (standard/with checksum digit), Code 93 Interleaved 2of 5 (standard/with checksum digi
2D Barcodes
PPLA/PPLB: MaxiCode, PDF417, Data Matrix (ECC200 only), QR code, Composite codes
PPLZ: MaxiCode,
Graphics
PPLA/PPLB: PCX, BMP, IMG, HEX,GDI, Binary raster(PPLB Only)
PPLZ: GRF, Hex amd GDI
Emulation
X-3200: PPLA, PPLB
X-3200Z: PPLZ
Software – Label editing
Windows Driver (Win 2000/XP/Vista/Windows 7), BarTender
Software – Utility
Printer Utilit, Font Utility
Media Type
Roll-feed, die cut, continuous, fan-fold, tags, ticket in thermal paper or plain paper and fabric la
Media
Max Width:4.4”(112mm) Min Width:1”(25.4mm) Thickness:0.0025”~0.01”(0.0635~0.254mm)
Max roll ca
Ribbon
Ribbon roll – max OD: 3”(76mm) Ribbon Length: max 360m wax, 300m resin Core size – ID: 1”(25.4mm) wi
Dimensions
W250 x L418 x H263 mm
Weight
11 kgs
Power Source
Internal Universal Power Supply
100 ~ 240 VAC, 50/60 HZ
Real Time Clock
Standard
Operation Environment
Operation Temperature: 40℉~100℉ (4℃~38℃),
0% ~ 90% non-condensing,
Storage Temperature: -4℉~
Optional Items
Guillotine Cutter,Rotary Cutter, Dispenser kit, Rewinder, Media Stacker, ArgoKee
Agency Listing
CE, FCC, UL, CUL, CCC, RoHS
